Simplify your dust extraction setup with our magnetic hose connector SYSTEM — a fast, frustration-free way to switch between tools and hoses of all sizes.

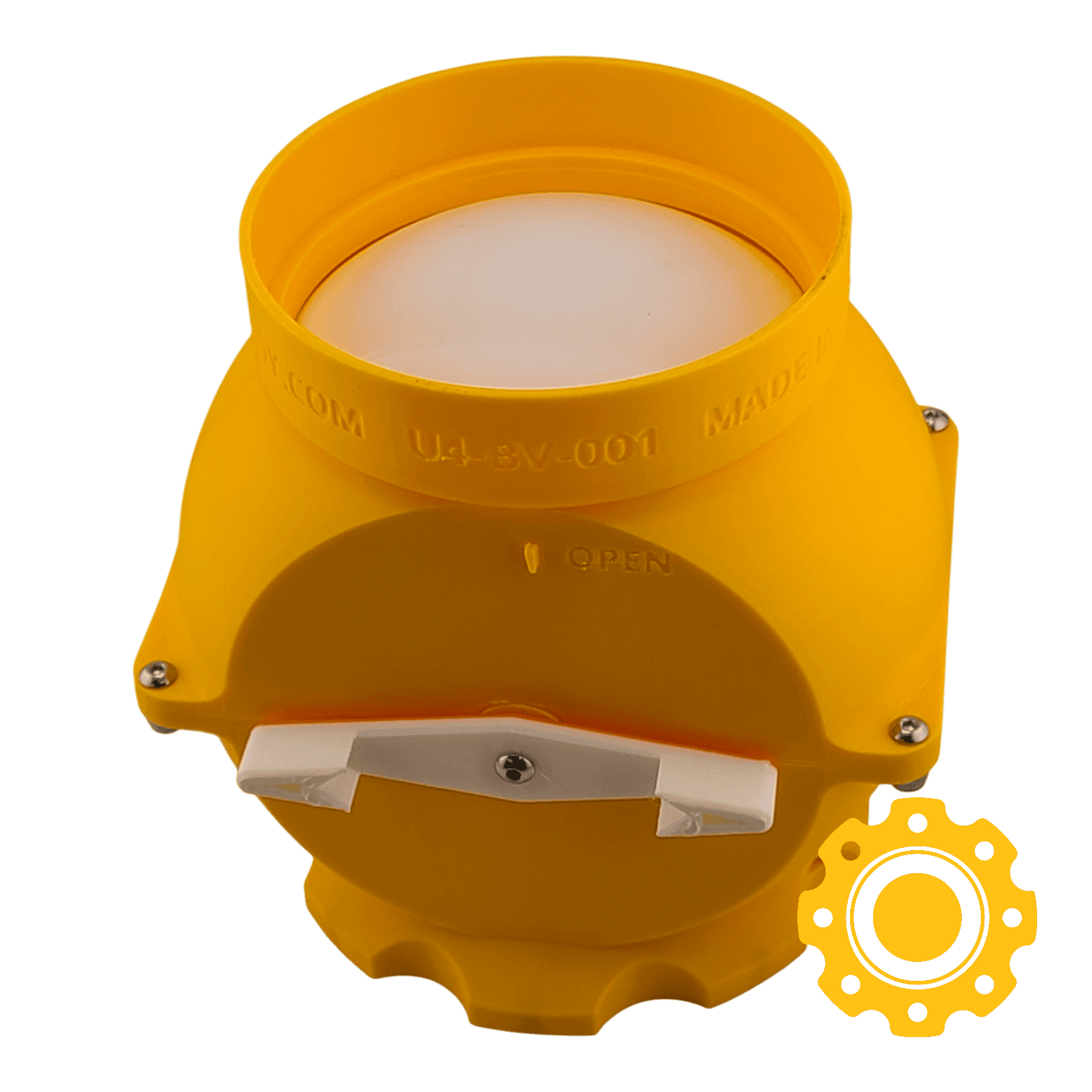

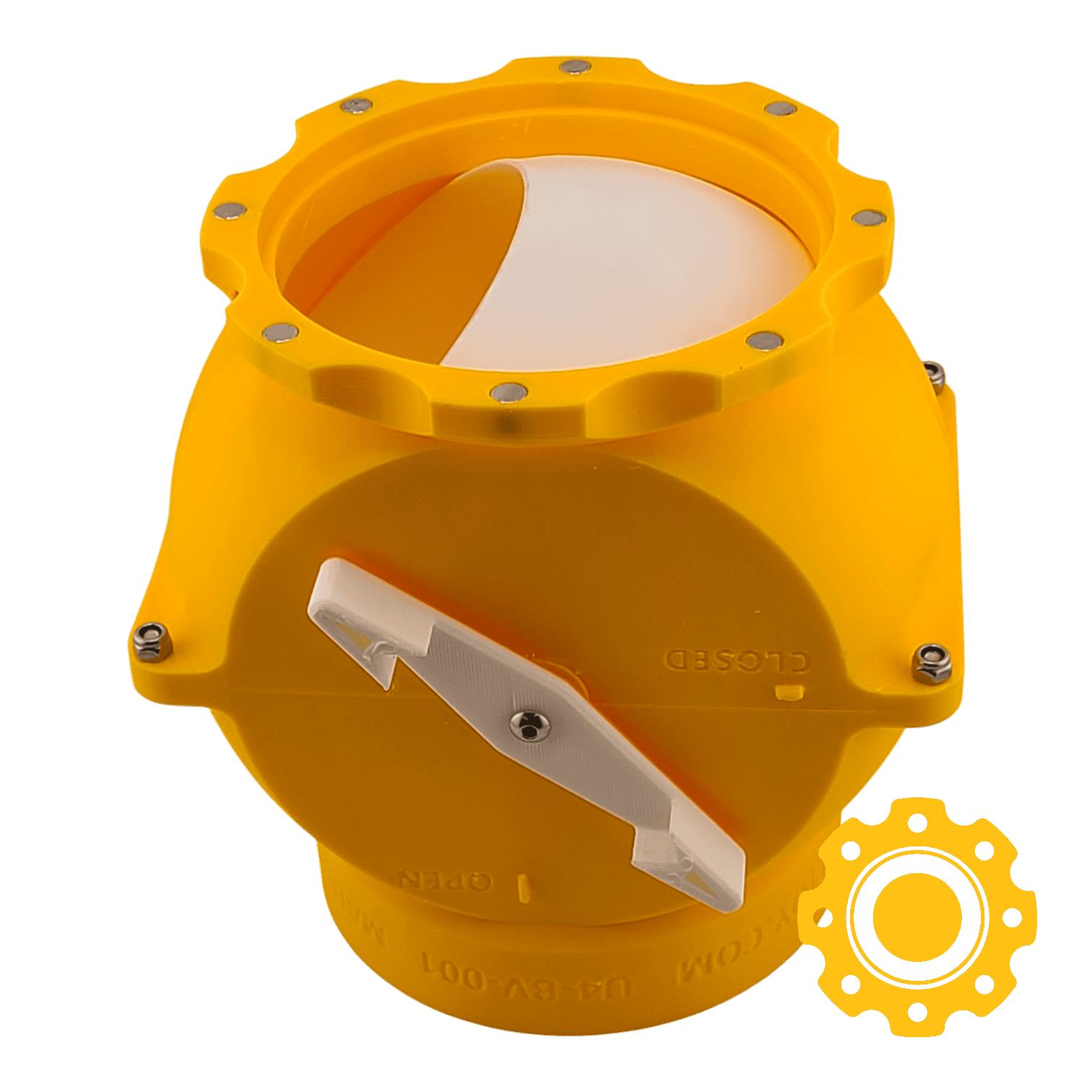

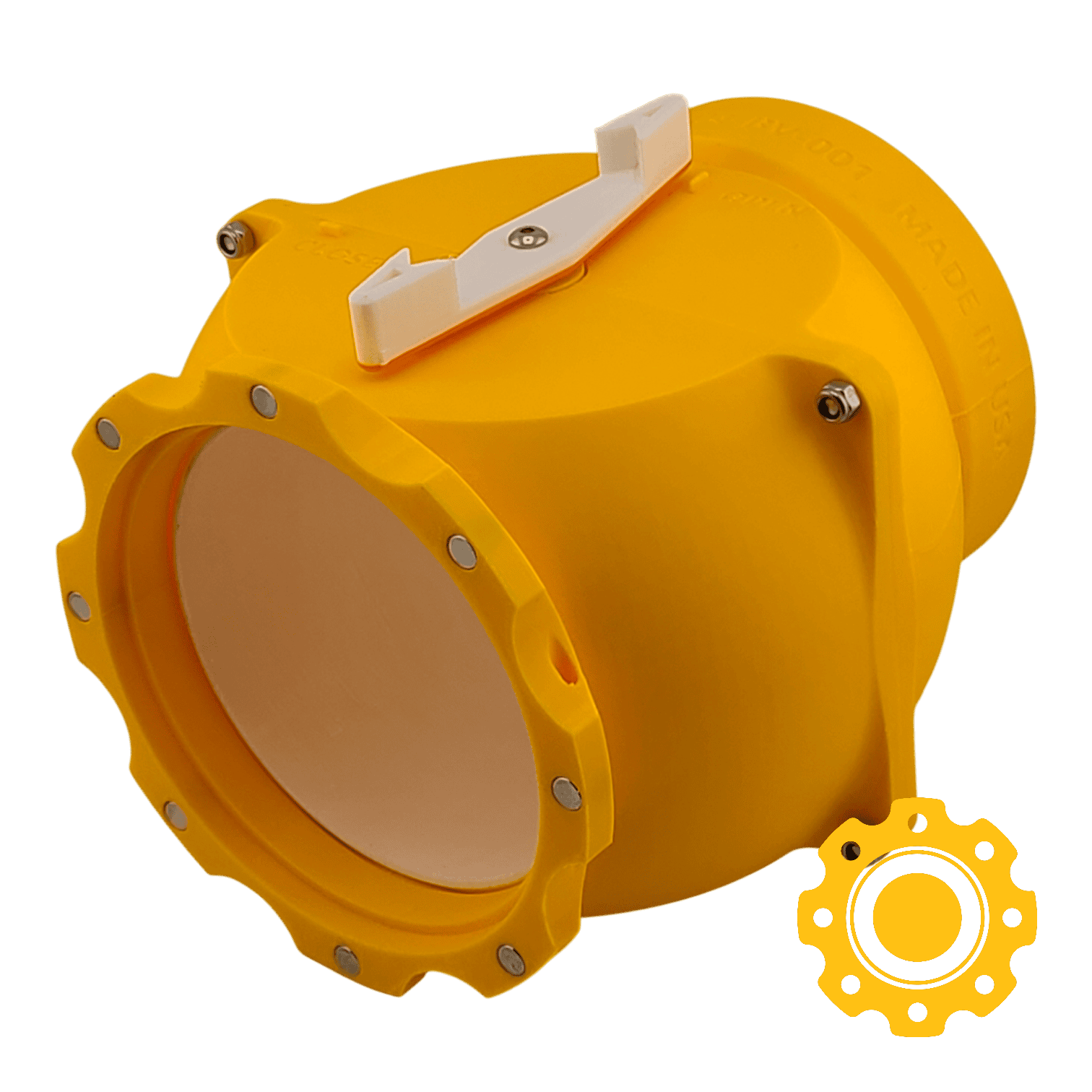

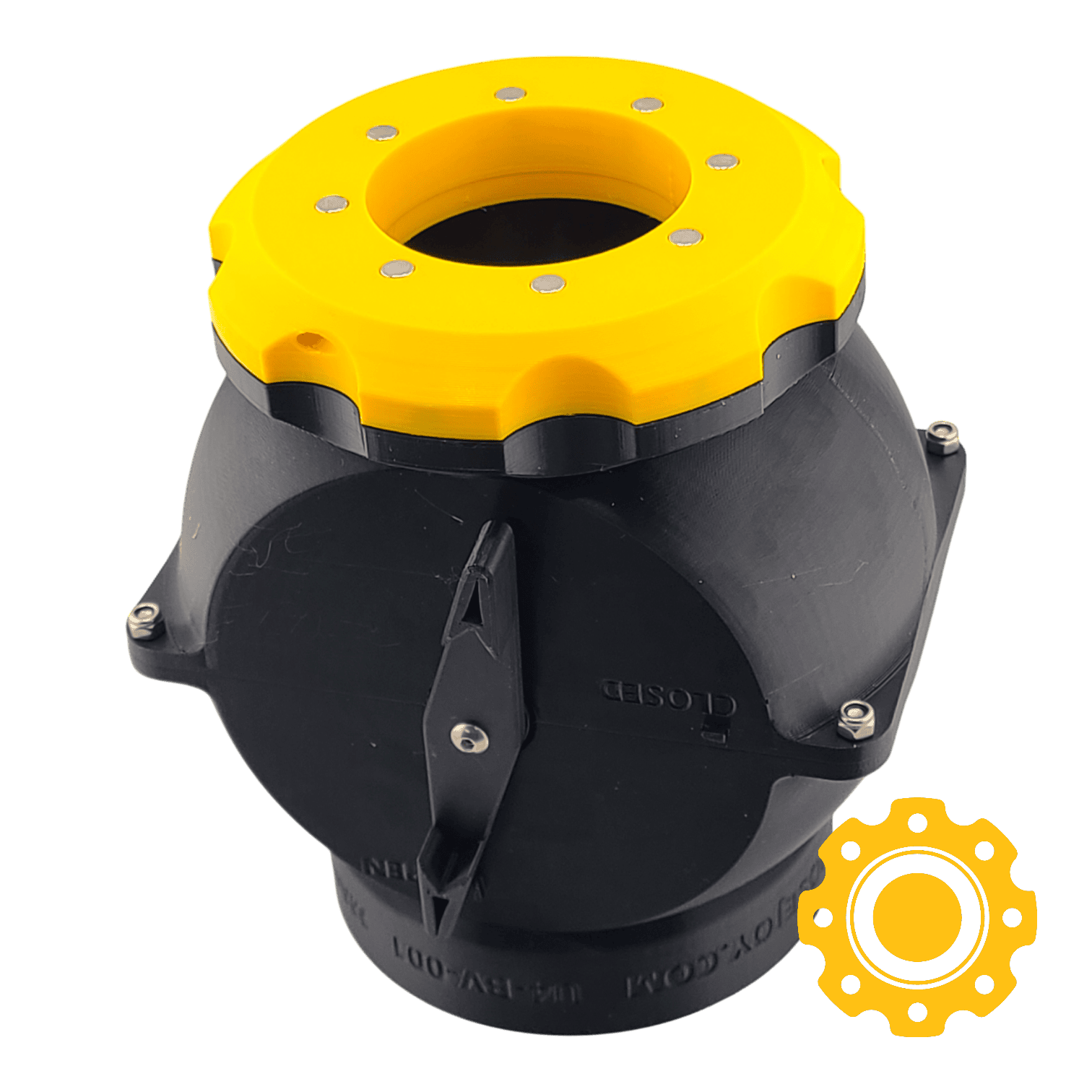

This ball valve blast gate doesn’t restrict air at all, never clogs, and shuts airtight. One end is designed to fit over standard 4″ PVC pipe, and the other end has a female magnetic connector that accepts our U4 series magnetic hose connectors and size-down adapters. *Note that these ball valves are designed to work with our flex hose adapters, sold separately. If you would like one that connects to PVC pipe on both ends, just message us! We also offer these in the U2 size that will connect to 2″ and 2.5″ PVC and our 2.5″ magnetic hose adapters.*

Designed for home workshops and pro shops alike, this connector uses powerful N52 neodymium magnets and premium rubber 0-rings to create a secure, airtight fit between hoses and the tool. No clamps, no struggling—just click, connect, and get back to work. A small 1/16th turn and tug in either direction releases the magnets allowing you to quickly detach your hose from one tool and effortlessly attach it to another. Perfect for folks who have arthritis.

We have a tool port adapter for *every tool* — if you don’t see one for your tool listed here, message us and we’ll make you one and add it to our SYSTEM!

• This ball valve blast gate seals airtight and presents zero airflow restriction when open
• Durable, workshop-tough construction
• Made in the USA

Includes:
• 1X U4-BV-001 ball valve with magnetic hose adapter
• Other adapters shown in pictures are not included — they’re just for demonstration but are available here in our store

How to use this adapter:

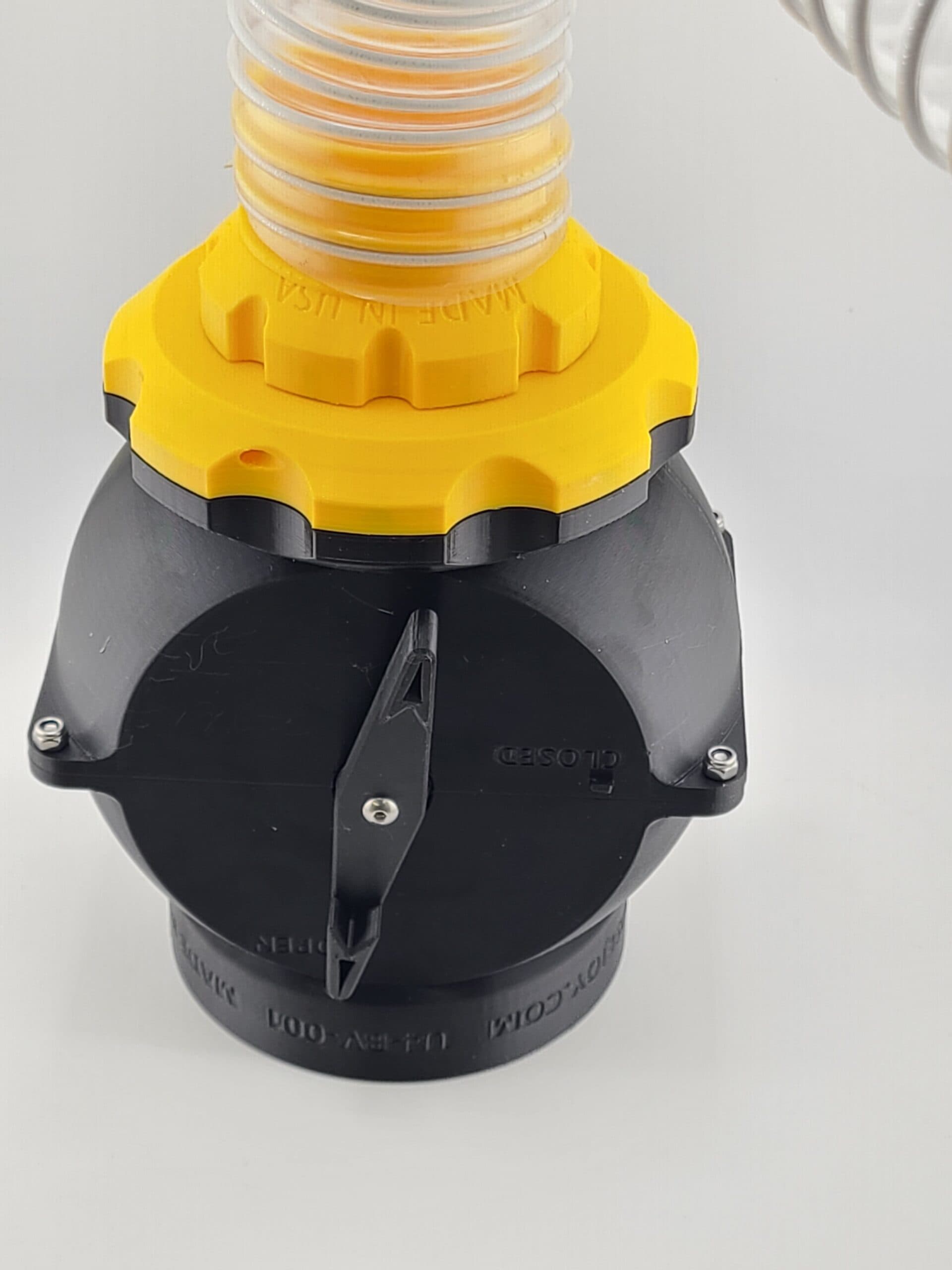

Attach one end of the ball valve to the PVC pipe coming from your dust collector; attach a magnetic hose adapter (U4-001, available here separately) to the other end. Open and close the valve by rotating the lever handle 90 degrees until it hits the stops, or anywhere in between to dial in the flow or balance between two running tools.

**NOTE: Pictures show different colored items in order to make the features (sealing O-rings, threads on hose ends, etc.) more visible. ACTUAL ITEMS SHIPPED WILL BE BLACK unless special arrangements are made. Yes, we can do Festool green. Flexible hoses, dust extractors, and tools are shown for demonstration only and are not included.**

Compatible with our other HoseJoy components — HoseJoy is a SYSTEM that allows you to connect any size hose to any dust extractor, Shop Vac, or dust collector and to any size tool port, quickly and effortlessly! No more wondering if it fits. Questions? Message us—we’re here to help!
